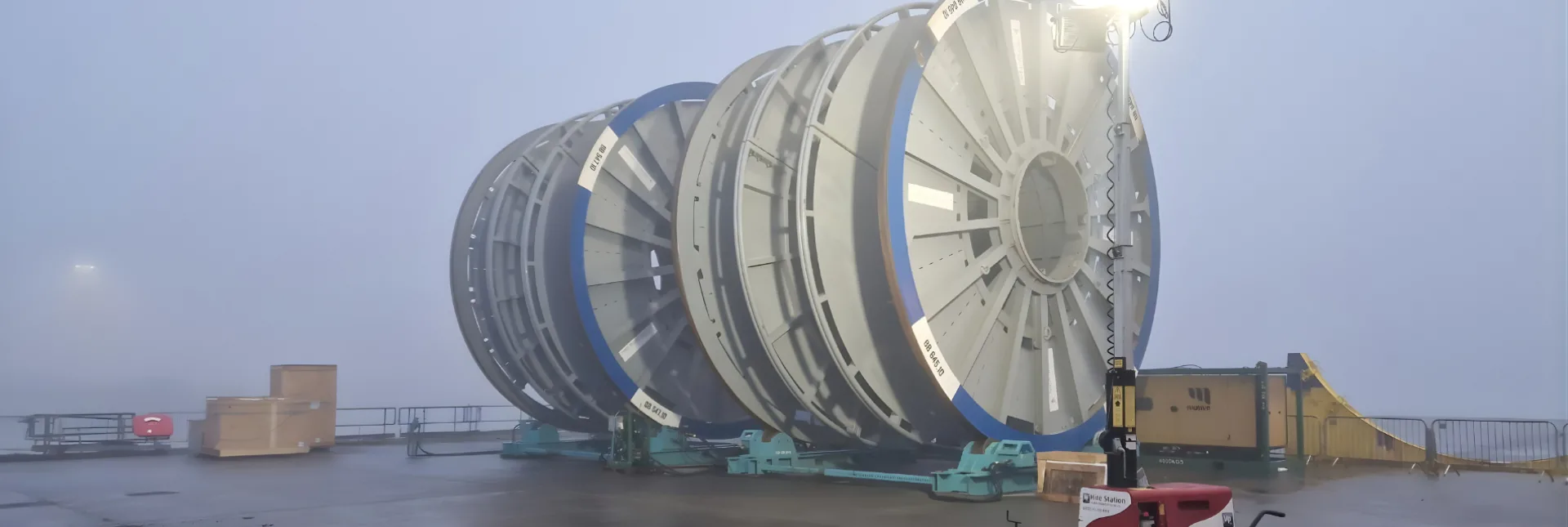

Under-roller Systems
Our range of Under-rollers includes crane and self-loading options.
Catering for lightweight 60Te capacity options, up to high-capacity Under-Rollers suitable for reels up to 350Te (including product).

Under-roller Systems

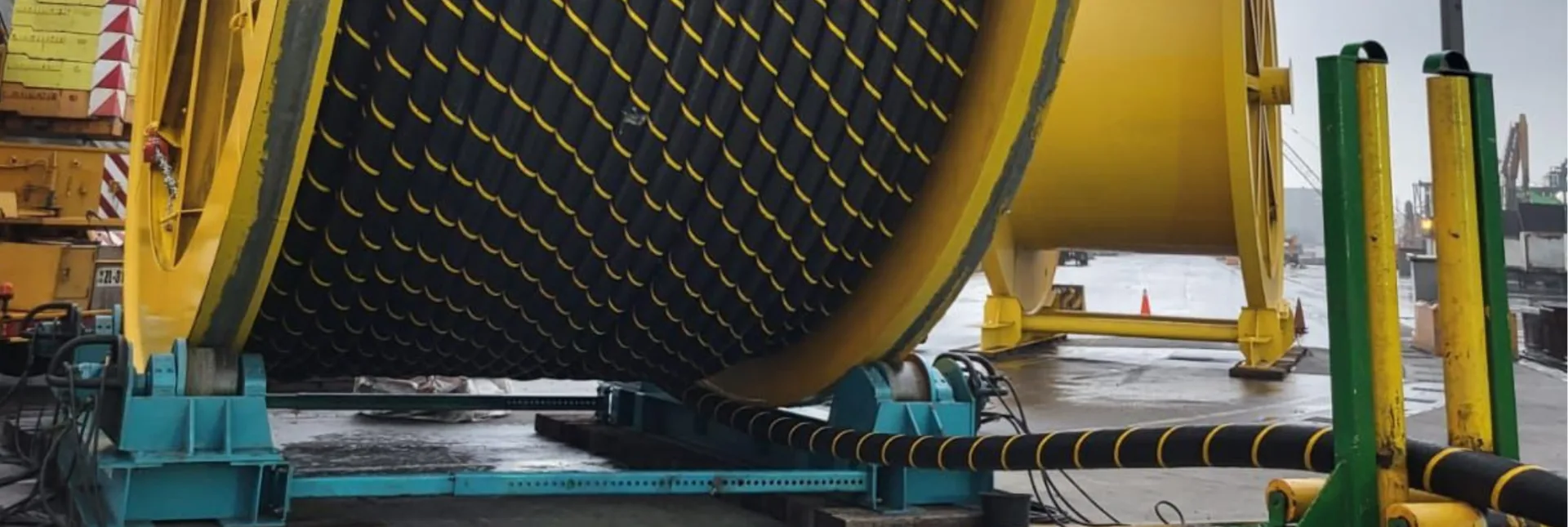

Ideal for onshore spooling and decommissioning projects, Under-rollers offer an economical alternative to heavy-duty solutions, with rapid set-up and a more compact footprint.

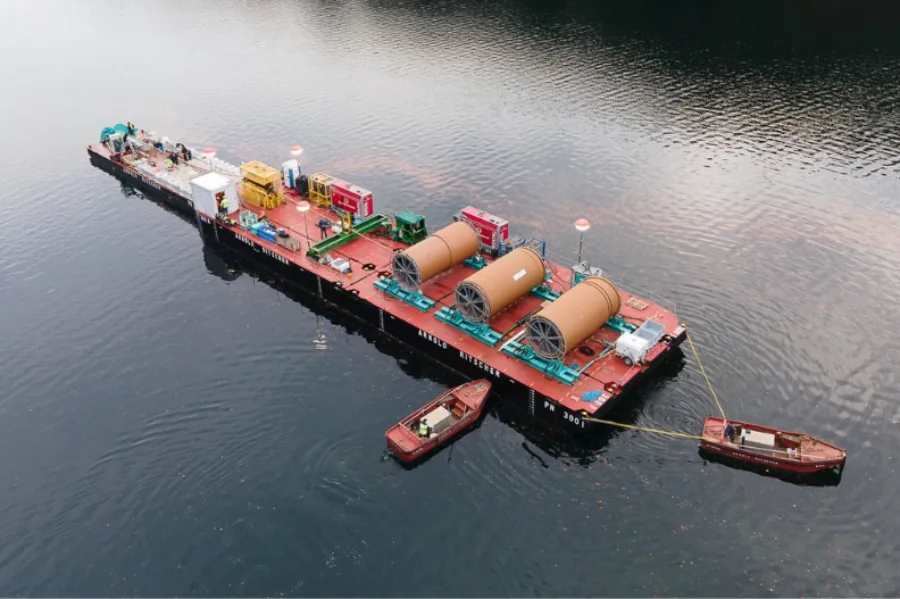

Motive Under-roller packages have delivered unique project solutions for our clients. During a pipeline replacement project within a sensitive national park environment, our Under-rollers were used to create a continuous deployment "assembly line" utilising a pontoon system.
By optimising the deck footprint and allowing for back-to-back reel operations, the Motive Personnel team completed a complex relocation in just 25 hours, significantly reducing costs and environmental disruption.

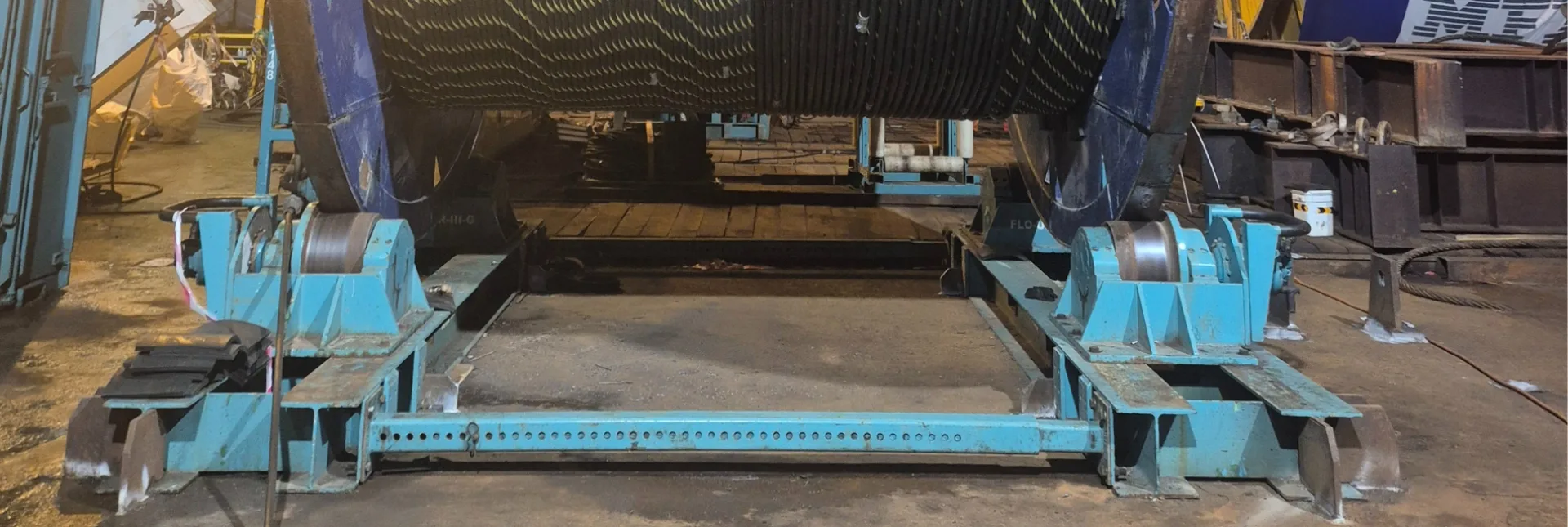

Lightweight Under-rollers
Under-rollers for restricted access
A range of lightweight, compact under-rollers is also available, perfect for storing or pulling out cable, umbilical, and pipe, on-site or around the yard where space or access may be restricted.

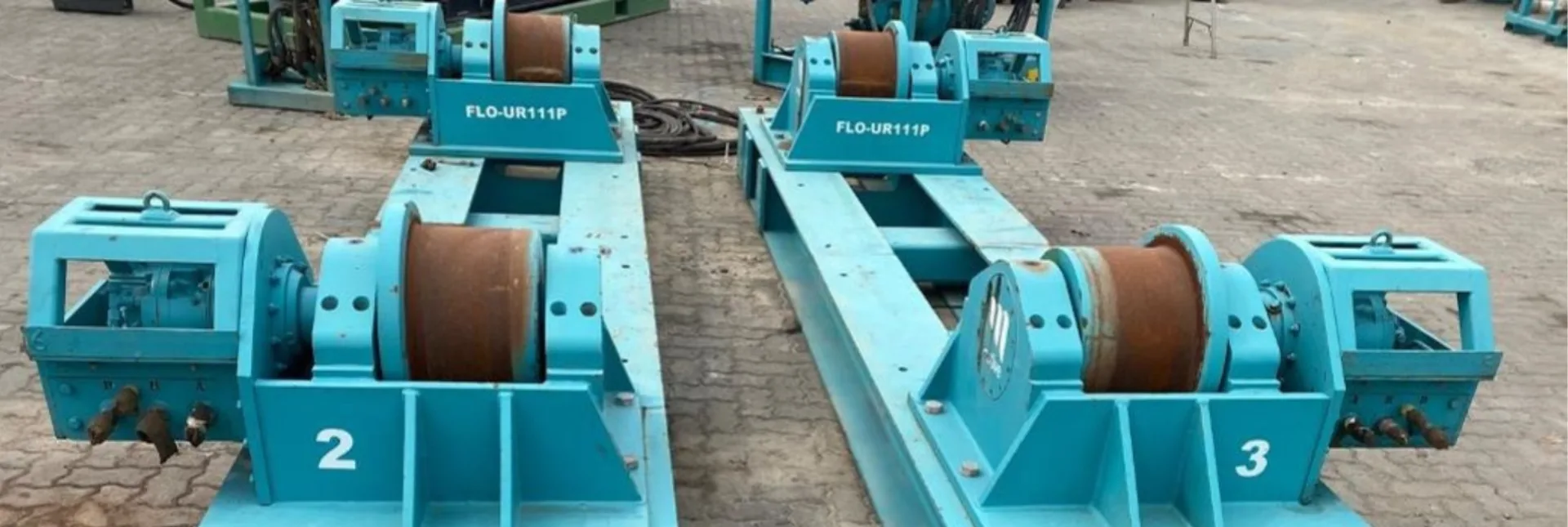

The lightweight 60Te capacity under-rollers consist of four powered rollers in carriages. Loading in either direction is possible with powered bi-directional wheels and braking in both directions.
UNDER-ROLLER SYSTEMS
Dimensions (per side): 5m x 0.96m x 0.92m
Maximum reel weight (including product): 60Te
Reel Diameter: Unlimited
Reel Width: Unlimited
Flange Width: Unlimited
Drive System: Various hydraulic drives available
Control: Manual hydraulic control stand
Carriage & bed beam weight (per side): 1,700kg
N.B. All weights/dimensions represented are for illustrative purposes
Dimensions: 7.95m x 9.23m x 1.503m
Maximum reel weight (including product): 250Te
Reel Width: 5-6m
Flange Width: 8.6m - 11.3m
Unit Weight: 17Te
Roller Speed: 35m/min
N.B. All weights/dimensions represented are for illustrative purposes
Dimensions: 2.1m x 1.3m x 1.1m
Maximum reel weight (including product): 350Te
Reel Diameter: Unlimited
Reel Width: Unlimited
Flange Width: Up to 240mm
Carriage & bed beam weight (per side): 2 No – fixed drive ends 2450kg each. 2 No – moveable ends 2800kg each
Lifting Arrangement: 4-point lifting
Forklift Pockets: Yes
N.B. All weights/dimensions represented are for illustrative purposes
Dimensions: 5m x 1.24m x 0.87m
Maximum reel weight (including product): 350Te
Reel Diameter: Unlimited
Reel Width: Unlimited
Flange Width: Up to 240mm
Carriage & bed beam weight (per side): 3,330kg
Lifting Arrangement: 4-point lifting
Forklift Pockets: Yes
N.B. All weights/dimensions represented are for illustrative purposes
FAQs
We maintain a global rental fleet across strategic bases in the UK, Norway, UAE, USA, Brazil, Singapore, and Taiwan. Depending on the equipment type and project destination, we can often mobilise within 24-48 hours for standard packages.
All Motive equipment is designed and manufactured in-house to meet global offshore standards with full traceability to component level and is CE/UKCA marked accordingly. Full certification packages are provided with every delivery.
Absolutely - Every rental is backed by a dedicated onshore project manager who serves as your single point of contact, ensuring smooth logistics, technical planning, and mobilisation. Additionally, we provide multi-disciplined, offshore-certified technicians for on-site installation, commissioning, and 24/7/365 operational support to ensure maximum uptime during your campaign.
Yes - While we have a standard product line, our in-house design and engineering teams specialise in custom-built winches, tensioners, and specialist marine and lifting equipment tailored to specific project footprints and load requirements. Our spreads are specifically engineered to meet the needs of any vessel with a focus on compact footprints and reduced sea-fastening requirements, ensuring a versatile and straightforward integration that transforms your available deck space into a high-performance offshore asset.
Yes - We provide a complete turnkey service for our rental fleet, ensuring equipment is not just delivered to the quayside, but fully integrated onto your vessel. Our multi-disciplinary teams manage the entire process, including deck layouts, installations, and commissioning to guarantee that every rental spread is sea-fastened and operational to the highest safety standards before departure.
In addition to our rental support, Motive Manufacturing provides these same comprehensive vessel services for client-owned assets, offering professional vessel mobilisations/demobilisations, structural sea-fastening, and critical repairs.
Yes - our Manufacturing division provides a full repair, maintenance, and overhaul service for client-owned offshore and back-deck equipment. Our focus is on design-for-sustainability, while our full-scale refurbishment service supports repurposing of assets to extend lifecyle, ensuring equipment remains compliant and efficient while actively reducing raw material demand, lowering embodied carbon, and diverting assets from disposal.
We offer comprehensive services, including Wire Rope Inspection (MRT), NDT (Non-Destructive Testing), Hose Integrity Management, Load Testing, and full Lifting Gear Examinations to ensure equipment remains compliant and safe.
Motive is redefining offshore service delivery through an integrated, circular operating model that reduces project emissions, extends asset lifecycles, and enables clients to meet accelerating net-zero targets. Our innovation lies in redesigning how onshore and offshore services are delivered, by integrating rentals, manufacturing, and certification into a coordinated delivery model that reduces multi-vendor interfaces, project complexity, and associated emissions.
