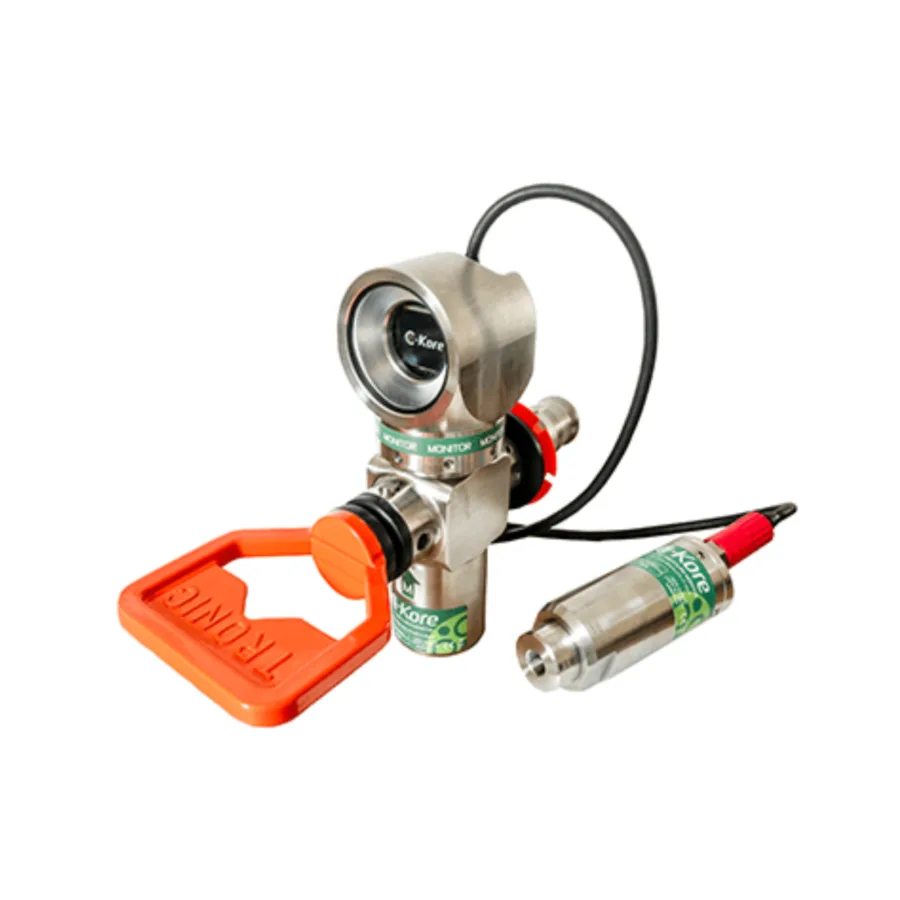

C-Kore Pressure Monitor
The C-Kore Pressure Monitor is a simple yet versatile tool for monitoring fluid lines during asset installation, for example, umbilical cables.
It is very compact allowing easy integration onto stab-plates and test fixtures.
C-Kore Pressure Monitor
Automated pressure testing and leak detection
When installing new assets the pressure monitor is used to prove that the fluid lines have been correctly pressurised and detect any leaks that occur, removing the need for manual measurement.
The units can be deployed subsea with the equipment and remain fitted during wet-storage until the point of hook-up.
The pressure monitor can be connected to a nearby Cable Monitor or TDR to show results on the display. It is also possible to daisy-chain multiple pressure monitors together for measuring different fluid lines. Every reading is time-stamped and stored in internal memory.
Autonomous power and Plug-and-Play configuration
The unit is powered by a high-capacity battery for stand-alone operation. Simple user configuration is possible with a plug-and-play USB connection.
KEY FEATURES
Pressure Measurement
Absolute pressure measurement of up to 1000 bar (14,500 psi). Differential measurements possible by using two units.
Compact
Easy integration onto stab-plates and test fixtures. Can be secured with a 50mm (2 inch) pipe clip.
Connectable
Stand-alone or link to a Cable Monitor to display readings. Log pressure readings into Cable Monitor test reports
Physical Shock
Measures impacts, acceleration and orientation changes. Logs shocks up to 200G in all 3 axis.
Temperature
Monitor environmental conditions during storage and transit. Accurate measurement over complete temperature range.
