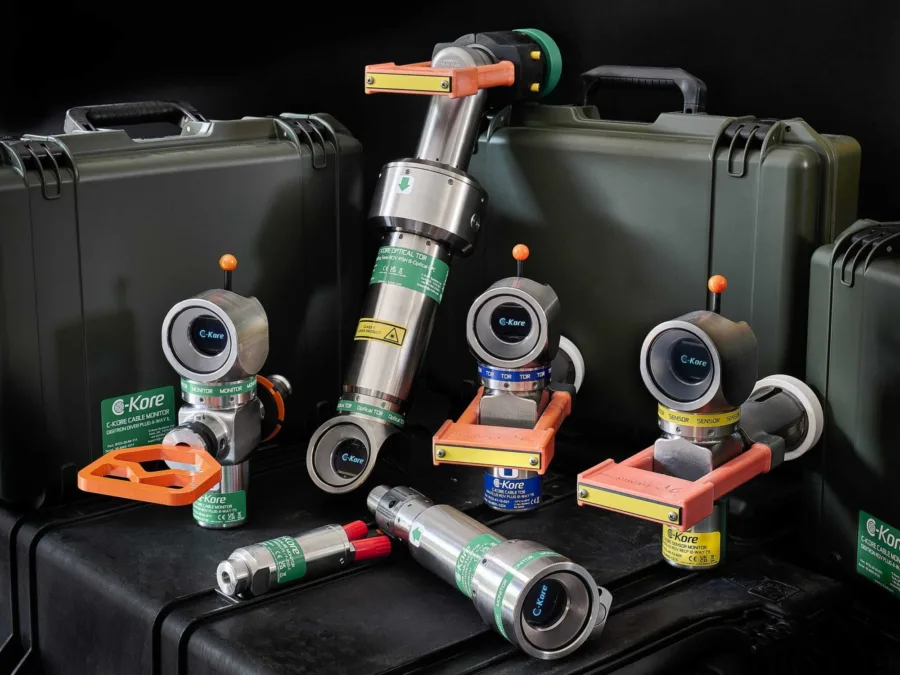

C-Kore subsea measurement tools eliminate slow and cumbersome manual measurement and downline deployment during construction campaigns.

Used to prove electrical, fibre optic, and fluid lines during the installation of umbilicals, jumpers, control modules, and down-hole sensors, the units save vessel time and are deployed subsea with assets to verify asset integrity all the way to the point of hook-up. Faults are found immediately, allowing time for remediation with time-stamped data-logged results.

C-Kore Cable Monitor

Automated subsea testing built for easy deployment

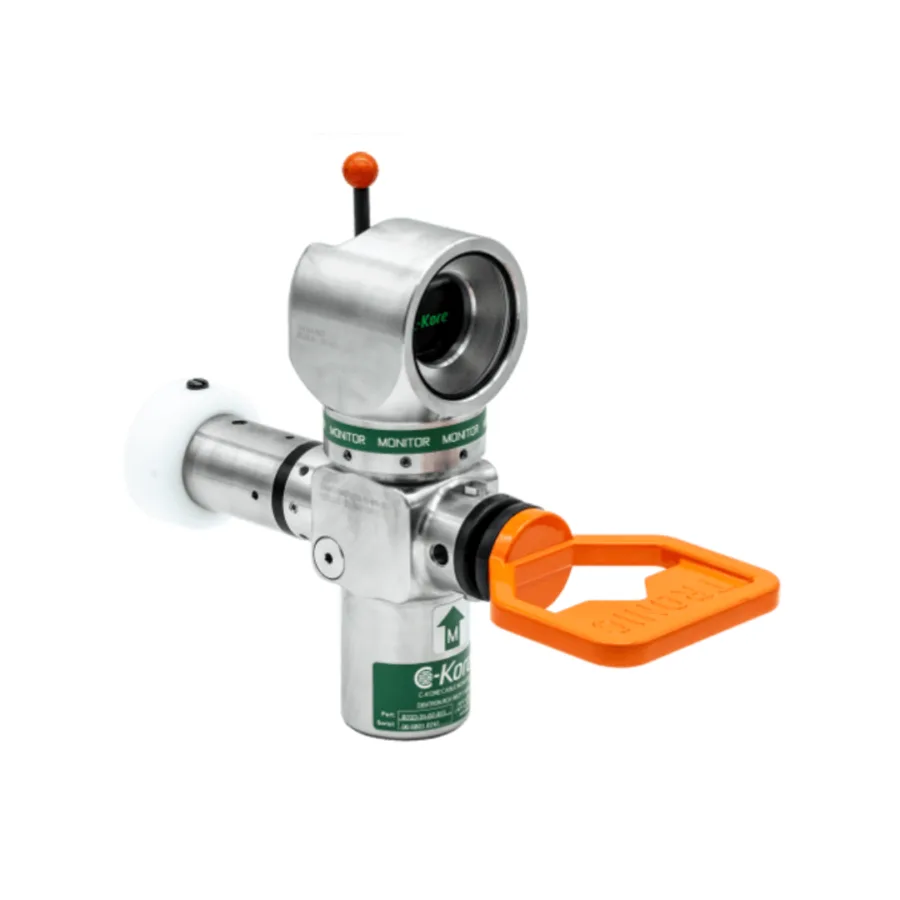

The C-Kore Cable Monitor is a compact, automated tool for testing subsea electrical assets. Tools are not much larger than standard dummy plugs, allowing simple hand-carried mobilisation and easy handling for divers and ROV.

Combining versatility with simplicity, it can be pre-configured in advance or easily set up in the field by the end-user for effortless deployment.

Continuous Monitoring from Factory to Hook-Up

When installing new equipment the Cable Monitor should be fitted as early as possible, ideally just after FAT of umbilicals or equipment. It then remains in place during load-out, transit, lay and wet-storage, taking scheduled automated measurements. This eliminates the delays and costs associated with manual measurement. As the unit is deployed along with the equipment, the second end of umbilicals are not deployed blind and asset health can be confirmed all the way to the point of hook-up.

The unit is powered by a high-capacity rechargeable battery for stand-alone operation. Simple user configuration is possible with a plug-and-play USB connection to choose what the unit will test and when. Every result is data-logged, with internal storage allowing years of data to be gathered.

ENQUIRE NOW

KEY FEATURES

Insulation Resistance
Detect breakdowns in insulation due to degradation or damage. Measurement up to 10GΩ with innovative low-voltage technology.

Continuity Resistance
Identify breaks or prove continuity for signal and power transmission. High-precision measurement from 1MΩ down to 0Ω.

Capacitance
Discover wiring errors and determine cable lengths. Proven on cables over 100km in length.

Physical Shock
Measures impacts, acceleration and orientation changes. Logs shocks up to 200G in all 3 axis.

Temperature
Monitor environmental conditions during
storage and transit. Accurate measurement over complete temperature range.

Voltage
Detect galvanic voltages and residual charge. Automatic flagging of voltage readings.
