C-Kore Back Deck Wireless
The C-Kore Back Deck Wireless unit provides a live dashboard of C-Kore test results, presenting the user with a consolidated view of the health of equipment before it is deployed subsea.
C-Kore Back Deck Wireless
Wireless data integration and real-time remote monitoring

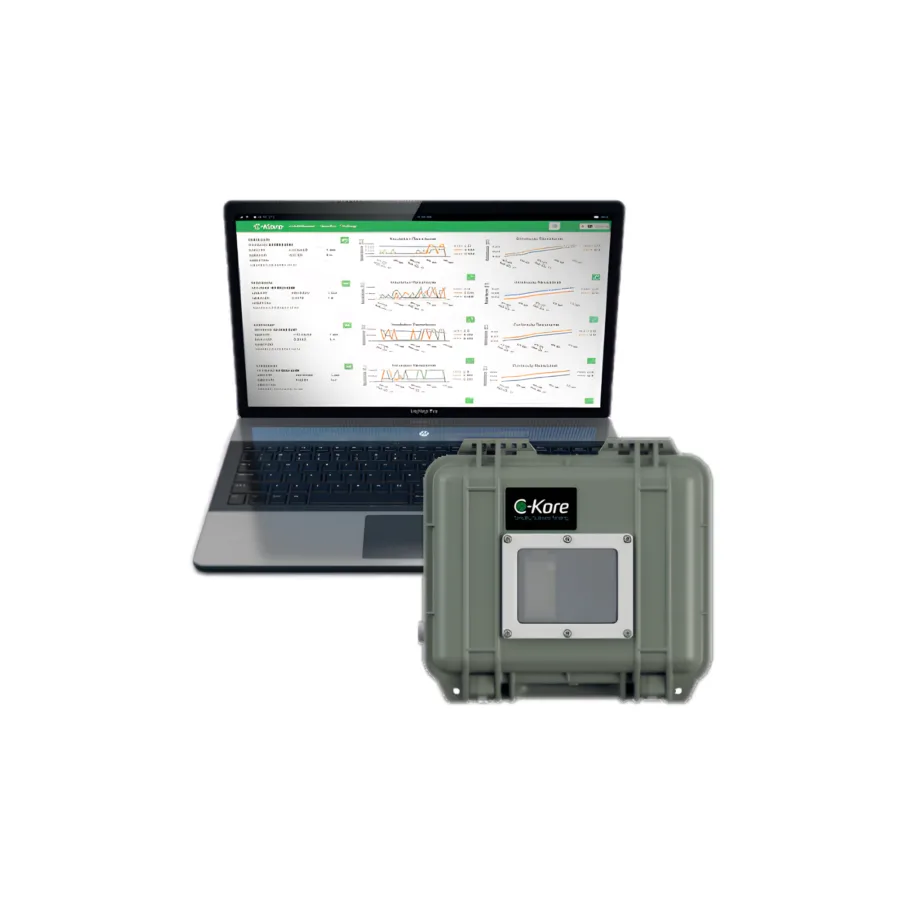

Typically used in conjunction with C-Kore Cable Monitor units fitted to an umbilical termination to monitor and log umbilical electrical test results until the second end is deployed subsea, the Back Deck Wireless unit is a small self-contained, weatherproof enclosure that is temporarily fastened next to the C-Kore units it will be monitoring.
It is powered by a replaceable rechargeable battery and connects wirelessly to both the C-Kore units and computers, so it does not require any physical connections to other equipment.
Once in place, the Back Deck Wireless unit will collect test results from adjacent C-Kore Units and log these to an interactive dashboard. The dashboard can be accessed over Wi-Fi and can also be coupled into existing network infrastructure if required.
Live web-based dashboard and remote data access
The Back Deck Wireless unit provides an overview of test results as a live interactive dashboard. It runs as a local webserver, so no software is required on connected computers.
The dashboard updates to show the latest readings from the connected units as well as graphing the trends in data over time. Any individual test result can be explored remotely, removing the need to connect to units via USB.
KEY FEATURES
Local Webserver
Reduce risk to offshore personnel while monitoring umbilical deployment. No internet connection required and no software to install.
Interactive Dashboard
View test results immediately after they have been made. View graphs of readings over time.
Complete Monitoring
Connect and consolidate results from multiple
C-Kore units. See all results on a single page and compare results between units.
Self-contained
Removable rechargeable battery and wireless connection. Easy to install, maintain and remove.
Network Integration
Connect directly to Wi-Fi hotspot or link to ship’s network. Multiple configuration options to allow simple integration using standard hardware.
