Spooling Winches

We offer a range of spooling winches manufactured for rental and sale.

What is a Spooling Winch?

Designed to be hydraulically, diesel powered for a range of applications. These spooling winches come with interchangeable shafts and adjustable pedestals to suit various drum sizes. Unlike a drum winch, rating of a spooling winch is based on its payload capacity.

All spooling winches can be provided with constant tension functions and are fully tested in house prior to delivery.

Motive Offshore Spooling Winches are suitable for:

  • Safe area applications
  • Wire spooling on and off systems
  • Umbilical deployment

Motive Offshore Spooling Winch features include:

  • Powerful hydraulic motor, for superior reliability in harsh environments
  • Fail safe brakes
  • Fitted with control panel on winch
  • Constant tension control
  • Standard operating temperature range is -10ᵒC to +40ᵒC
  • Meet BS EN 12079 standards
  • CE compliant

Make an enquiry

To find out more about our standard and bespoke Spooling Winches, get in touch with our team today. Call us on +44 (0) 1261 842103 or make an enquiry.

Make an enquiry
6 Te WLL Pneumatic Spooling Winch

6Te WLL Pneumatic Spooling Winch

Dimensions - 3491mm x 1525mm x 1723mm
Rated Payload Capacity - 6Te
Pressure Regulator Fitted - Yes
Tare Weight - 1,500 Kgs
Gross Weight - 1,500 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

12 Te WLL Pneumatic Spooling Winch

12Te WLL Pneumatic Spooling Winch

Dimensions - 4524mm x 1500mm x 1586mm
Rated Payload Capacity - 12Te
Pressure Regulator Fitted - Yes
Tare Weight - 1,500 Kgs
Gross Weight - 1,500 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

35 Te WLL Diesel Spooling Winch

35Te WLL Diesel Spooling Winch

Dimensions - 4645mm x 2000mm x 2194mm
Rated Payload Capacity - 35Te
Constant Tension - Yes
Tare Weight - 5,000 Kgs
Gross Weight - 5,000 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

50 Te WLL Electric Spooling Winch

50Te WLL Electric Spooling Winch

Dimensions - 6410mm x 2515mm x 2935mm
Rated Payload Capacity - 50Te
Tare Weight - 5,000 Kgs
Gross Weight - 5,000 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

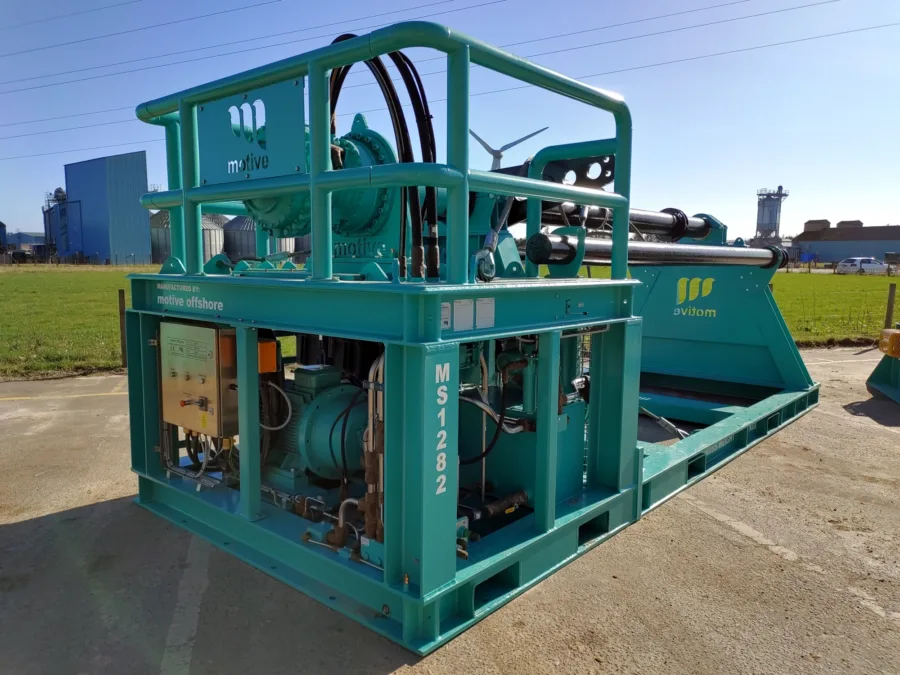

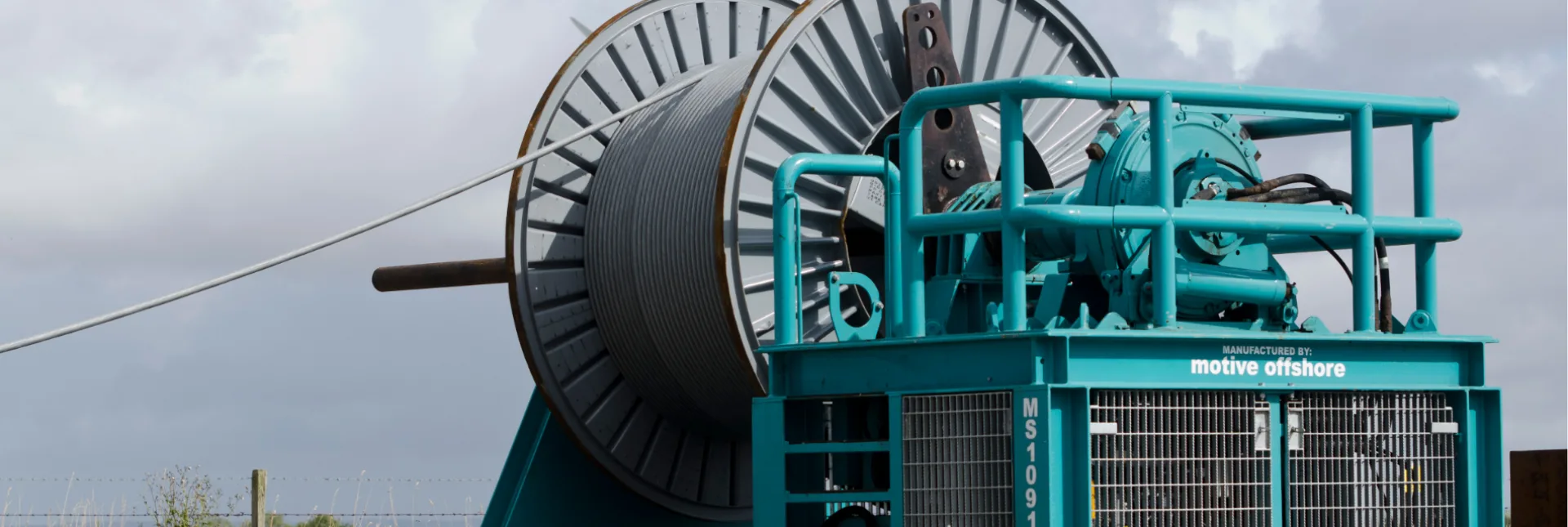

75 Te WLL Diesel Spooling Winch

75Te WLL Diesel Spooling Winch

Dimensions - 6473mm x 2520mm x 2424mm
Rated Payload Capacity - 75Te
Constant Tension - Yes
Tare Weight - 5,000 Kgs
Gross Weight - 5,000 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

200 Te WLL Diesel Spooling Winch

200Te WLL Diesel Spooling Winch

Dimensions - 8372mm x 2840mm x 3419mm
Rated Payload Capacity - 200Te
Constant Tension - Yes
Tare Weight - 26,500 Kgs
Gross Weight - 26,500 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

300 Te WLL Capacity Spooling Winch

300Te WLL Capacity Spooling Winch

Stored Dimensions - 10000mm x 3000mm x 3946mm
Rated Payload Capacity - 300Te
Gross Weight - 29,500 Kgs
Lifting Arrangement - 4 point lifting
Forklift Pockets - Yes

350 Te WLL Diesel Spooling Winch

350Te WLL Diesel Spooling Winch

Dimensions - 11670mm x 2934mm x 5842mm
Dimensions (with retractable arms) - 11670mm x 7540mm x 5842mm
Rated Payload Capacity - 350Te
Constant Tension - Yes
Tare Weight - 33,000 Kgs
Gross Weight - 33,000 Kgs
Lifting Arrangement - 4 point lifting, modular lift
Forklift Pockets - Yes
