Products

From high-capacity winches, umbilical deployment equipment, specialised subsea solutions to ancillary equipment - we've got your project requirements covered.

Lifting / Pulling / Deployment / Mooring

Flexible, Umbilical and Cable Lay Equipment

Monitoring & Testing

Flushing, Fluid Transfer and Filtering equipment

Power Supply

Renewable Power Solutions

Flexible, Umbilical and Cable Loading, Storage and Handling Packages

Subsea Tools

Wire Rope/Flexible Routing/Diverters

HYDRAULIC DRUM WINCHES

HYDRAULIC DRUM WINCHES

From 2Te – 350Te SWL, all Motive winches are built onsite, CE compliant and manufactured to relevant BS EN standards. All winches can be de-rated to match client requirements.

SPOOLING WINCHES

SPOOLING WINCHES

Range of back-tension spooling winches up to 350Te, traction and capstan winches.

AIR WINCHES

AIR WINCHES

ATEX classified/ CE compliant 5Te, 7Te and 10Te WLL Air Winches are available for rental or sale, suitable for ATEX Zone 1 and Zone 2.

MARINE CRANES

MARINE CRANES

A range of marine cranes with fixed or folding booms, up to max lifting capacity 20Te.

CLUMP WEIGHTS

CLUMP WEIGHTS

Rental clump weights available from 2Te to 25Te, fully certified and supplied with rigging if required. We also design and manufacture custom clump wights.

UNDER ROLLERS

UNDER ROLLERS

Four-wheel drive crane or self-loading under-rollers suitable for reels up to 350Te/11.2m diameter. Can be manually or digitally controlled, and supplied with diesel or electric hydraulic power packs. Self-loading versions supplied complete with cradles to avoid the need for crane loading/unloading of reels.

BOW CABLE ENGINES

BOW CABLE ENGINES

Suitable for lifting 5Te of suspended product weight, our bow cable engines allow the controlled handling of flexible pipe, umbilicals and cables from 20mm to 325mm diameter.

Featuring an integrated electric HPU, control and monitoring is via a remote belly box and panel display, showing product distance, line tension, line speed and grip pressure.

LINEAR CABLE ENGINES

LINEAR CABLE ENGINES

Horizontal Linear Cable Engines available up to 5Te line pull, suitable for handling flexible pipe, umbilicals, cables and steel pipe from 20mm to 325mm diameter. Featuring an integrated electric HPU, LCEs can be operated locally from manually controlled valves, although the primary control and instrumentation is provided on a remote-control station.

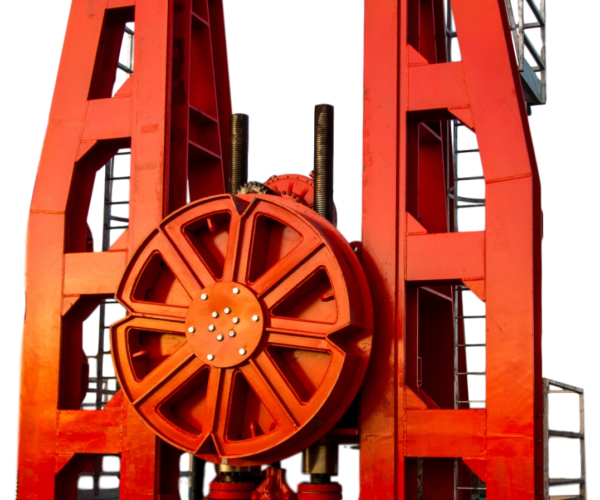

REEL DRIVE SYSTEMS

REEL DRIVE SYSTEMS

Our RDS have been designed with multiple reel installations on multipurpose vessels in mind, however our 450Te system can also be used for deploying one reel at a time. All functions are hydraulically powered, and large line pulls can be achieved due to the heavy-duty drive units. Our systems are modular and easily road transported, without the need for escort.

SUBSEA BASKETS

SUBSEA BASKETS

We have a comprehensive series of subsea baskets from the smallest S1, to the 23Te SWL MP6.

TENSIONERS

TENSIONERS

Range of tensioners up to 15Te WLL, handling capacity 20mm to 430mm dia product.

TURNTABLES / PALLETS

TURNTABLES / PALLETS

Unique solutions for loading pallets onshore. Can be deployed onto the seabed and lift out jumper with vessel crane. 4-piece pallets also available for horizontal transport. Max capacity up to 200m product / 17.5Te.

Monitoring & Testing

Monitoring & Testing

  • Oil analysis
  • Particle Counters
  • Remote Control Stations – c/w protective cages if required.
  • Running Line Monitors – also available for Zone II use.
  • Test Bed Facility - onsite vertical and horizontal large-capacity test beds.
  • Pressure Testing
Flushing, Fluid Transfer and Filtering equipment

Flushing, Fluid Transfer and Filtering equipment

  • Air Blast Coolers
  • Centrifugal, Diaphragm, Submersible and Piston Pumps

Full range of pump types suitable for different environments and applications.

  • Filtration Systems
  • Flowmeters
  • Flushing Skids
  • Hydraulic high-pressure pumps

We offer 3 versions of the Dynaset high pressure pump: Standard pumps, Subsea pumps modified for use subsea and mounting on ROVs, and Drilling pumps with extra coating of pistons and valves making it possible to increase the pumping of particles by 25%.

Power Supply

Power Supply

  • Compressors
  • HPUs

Electric and diesel options from 18.5kW to 1360kW, safe area and zoned options.

  • Generators

Crash frame mounted diesel generators, suitable for onshore/offshore applications. Suitable for use with socket splitter boxes where required.

Renewable Power Solutions

Renewable Power Solutions

Motive Offshore Group offers a range of integrated renewable energy power solutions, custom-designed to suit the environment, kW load demand, and location-specific needs.

Hose/Umbilical Reelers

Hose/Umbilical Reelers

Comprehensive line of reels with integrated power packs for holding hoses or flexible products. Umbilical Reels can be modified to meet project-specific requirements, for example to include multicore rotary couplings and electric slip rings, and to meet the required radius specifications.

Reels

Various sizes always in stock, custom reel manufacture available.

Roller Boxes

Various models including roller boxes, v rollers, aerial roller boxes and cable skates, available for the controlled handling and guidance of flexible pipe, cable and umbilical. Roller boxes can be positioned on grillages and suspended on a forklift to raise product height, or change the direction of the product. They can also be secured together and used as a cable highway.

Self-loading Reel Carriers

Versatile self-loading reel handling transporters to lift, move and turn reels up to 320Te without the need for any cranes. Incorporated under rollers spool product on or off reels.

Shaft Drive Systems

Modular Spoolers fully adjustable for reels from 2m - 5m diameter, variable width and up to 150Te capacity. Modular for containerised transport. Supplied with electric or diesel hydraulic power pack. Operating Mods: Manual Haul In / Constant Tension / Manual Pay Out.

Shears/Hydraulic Cutters

Shears/Hydraulic Cutters

Shears are supplied with a hydraulically powered base to retract the shear jaws after each cutting operation. Mounted on skids, the pipe or cable is fed through the unit, normally using a tensioner. The scissor action shear is hydraulically powered by a remote-control valve which can be located in the tensioner control cabin.

Subsea Tools

Subsea Tools

  • ROV Pumps
  • Underwater Grinders
  • Hammer Drills
  • Sabre Saws
Wire Rope/Flexible Routing/Diverters

Wire Rope/Flexible Routing/Diverters

  • Swivelhead Fairleads
  • Overboarding/A Frames
  • Overboarding Chutes
  • Sheaves
  • Tagging Towers

Looking for Rental services?

We support on-site installations, commissioning, testing, and operating, with multi-disciplined technicians ready to mobilise 24/7/365.
